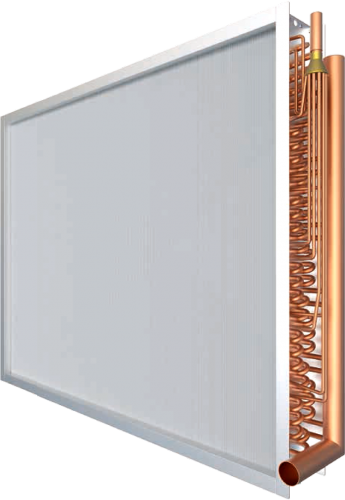

Evaporating Coils

Morgana’s Evaporating Coil heat exchangers are compatible with all design requirements from the current low-GWP refrigerants available today. They are made according to customer specifications in terms of thermodynamic, structural and frame conformation performance, so that they can be perfectly integrated into the customer’s machine or system.

Main features:

Compatible with all synthetic refrigerants, including A2L.
Possibility of 360 ° customization
Maximum design pressure 45bar also for use as a reversible.
5 geometries available to meet all the needs related to performance and internal volume reduction
21 tubes available, smooth and ribbed
4 materials available for the fins, including aluminum fin with hydrophilic treatment.
Fin spacing from 1.6mm up to 11.0mm to ensure optimal defrosting intervals
Various materials available for the frame, including galvanized steel, aluminum, stainless steel, copper
Possibility of testing with helium test machine
10 surface treatments available to increase the life of the product in aggressive environments
